These kiln models have been specifically designed for use with the precious metal clay silver and gold.

The specially constructed kilns have a fully programmable regulator with specifically written software so it is easy to carry out the controlled firing of all ArtClay products.

It is possible to carry out fully automated firing, with a preliminary drying period, controlled temperature and firing time. The large inspection window enables the firing process to be observed.

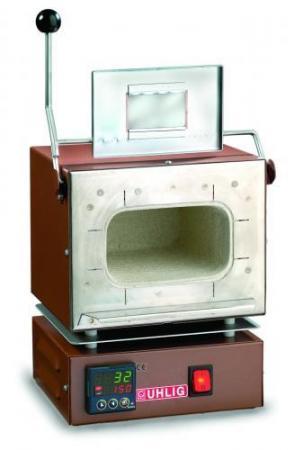

Art Clay Silver Kiln: heated from four sides

Art Clay Kilns

(Precious Metal Clay)

The Enamel Shop - All rights reserved 2008

The Enamel Shop Established 1976

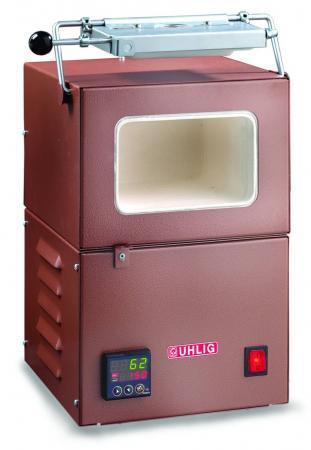

Art Clay Gold Kiln: heated from four sides

Technical Data



Max Temperature             900 Degrees Celcius

Supply Voltage                 230 V - 50 Hz

Capacity                          900 Watts

System of Protection             1

Probe - thermocouple       NiCr-Ni (type K)

Weight                                6 Kg

Firing Chamber Size

(H x W x D)                       70 x 120 x 130 mm

Overall Size

(H x W x D)                     275 x 225 x 245 mm

Technical Data



Max Temperature           1100 Degrees Celcius

Supply Voltage                 230 V - 50 Hz

Capacity                        1200 Watts

System of Protection             1

Probe - thermocouple       NiCr-Ni (type K)

Weight                              11 Kg

Firing Chamber Size

(H x W x D)                       90 x 140 x 155 mm

Overall Size

(H x W x D)                     365 x 245 x 320 mm

CE Approved

CE Approved
